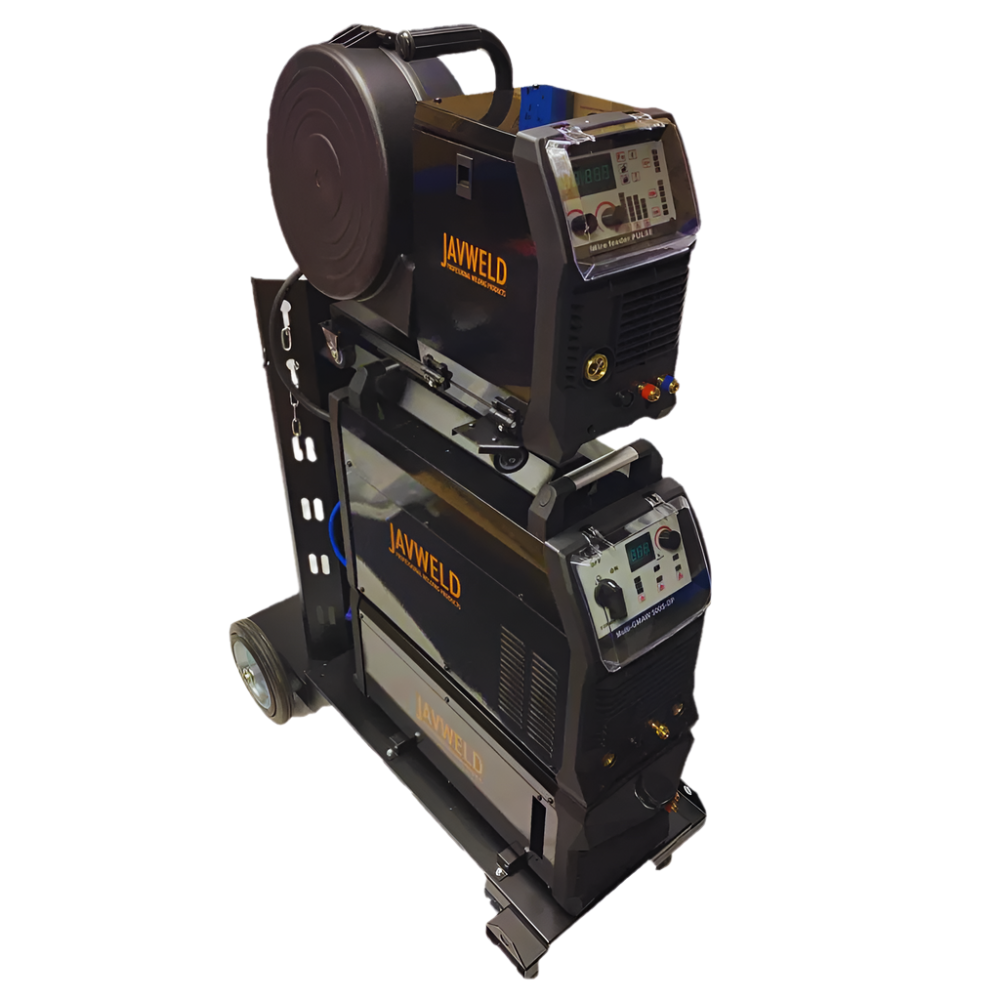

Javweld 500Amp 380Volt Dual pulse synergic multi-process mig welding machine
Regular price
R 84,072.85
Couldn't load pickup availability
Features
The Javweld 500Amp 380Volt Dual pulse synergic multi-process mig welding machine offers powerful and smooth precision welds. This innovative machine allows for efficient and accurate welding, ensuring professional results every time. Upgrade your welding capabilities with this superior, user-friendly machine.
- Input voltage auto selected from 3-400Volts
- Single + dual pulse
- Synergic settings - FE, S/S, CUSI, CUAL, Aluminium
- Bi-level crater fill function
- Wave form control for Arc stability
- 2T/4T function
- Programmable job memory function
- Clear digital display
- Fine tune current selector
- High duty cycle
- Over & under load protection
Specifications
| Power supply voltage | 3V-400V |
| Output current range | 10-500A |
| Effective current (A) | MIG: 33A TIG: 27A MMA: 24A |
| Rated input power | MIG: 23kW TIG: 18kW MMA: 23kW |
| Rated input current | MIG: 44A TIG: 35A MMA: 44A |
| No load voltage | MIG: 68V TIG: 14.5V MMA: 14.5V |
| Welding processes | MIG Pulse MIG Flux-cored MIG Dc TIG MMA |
| Max alloy capacity | MIG: 0.8-1.6mm TIG: 1.6-4.0mm MMA: 2.5-6.0mm Gouging: 3.15-4.0mm |
| Spool capacity | 5kg 15kg |
| Rated duty cycle @40°C | 60% @500A 100% @400A |
| Weight | 32.5 |
Box contents
- Javweld 500Amp 380Volt dual pulse mig welding machine
- Pulse wire feeder
- Wire feeder inter connecting cable
- Water cooler
- Gas flow meter
- Gas pipe

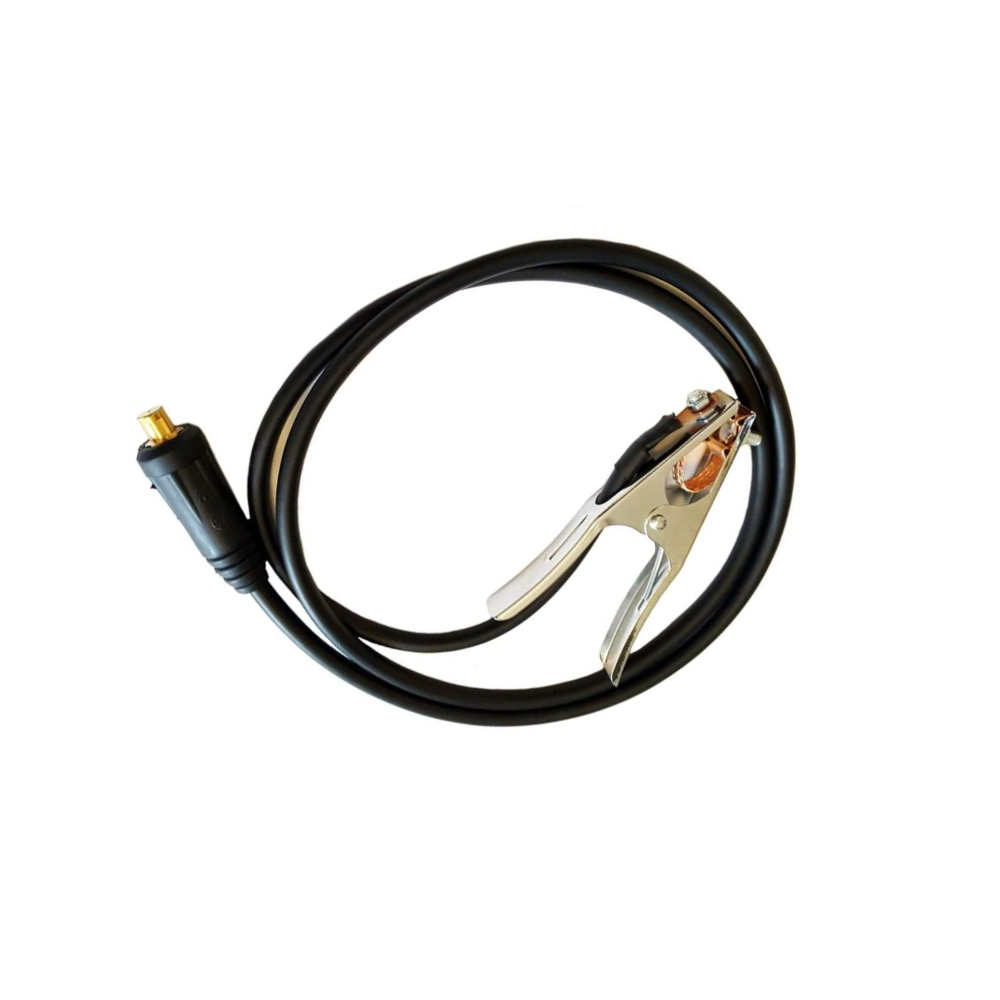

- Earth clamp lead
- Trolley
- User manual
- Mig torch - Optional extra not included
-
Current control foot pedal - Optional extra not included
Warranty
- Javweld machines include a one year warranty
- All Javweld machines are locally backup & supported by Online industrial
- Javweld South Africa warranty terms & conditions apply
- Online industrial terms & conditions apply
