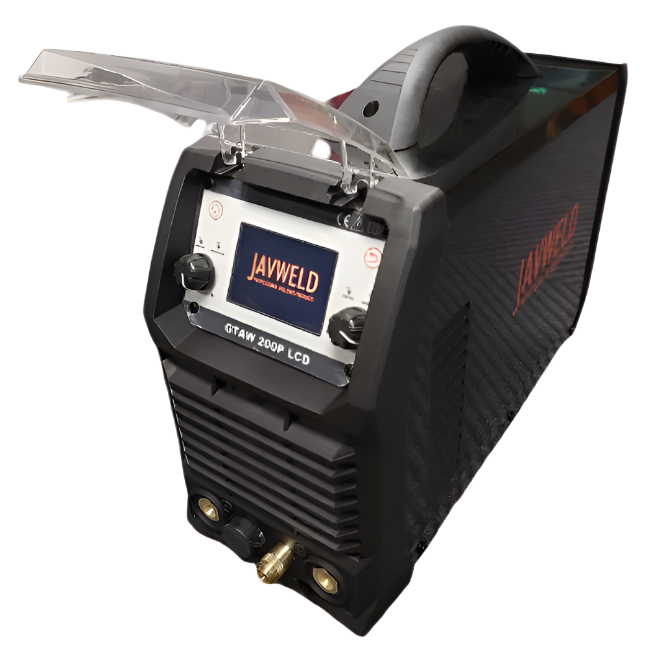

Javweld 200Amp 220Volt HE series Dc Pulse PFC tig welding machine
Regular price
R 11,291.42
Couldn't load pickup availability
Features
Introducing the Javweld 200Amp 220Volt HE series Dc Pulse PFC tig welding machine. With its professional Dc tig capabilities and impressive performance on ultra thin surfaces, you can easily achieve precise welds with no deformation. Upgrade your welding game with this state-of-the-art machine.
- PFC Technology
- HF Tig function
- Pulse Tig function
- Pre flow + post flow function
- 2T/4T function
- Hot start + Arc force function
- Clear LCD display
- Fine tune current selector
- High duty cycle
- Over & under load protection
Specifications
| Power supply voltage | 220V |
| Output current range | 10-200A |
| Effective current (A) | |
| Rated input power | |
| Rated input current | |
| No load voltage | 67V |
| Welding processes | Pulse TIG HF TIG AC TIG DC TIG MMA |
| Max alloy capacity | TIG: 1.6-4.0mm MMA: 2.0-4.0mm |
| Rated duty cycle @40°C | 60% @200A 100% @120A |
| Weight | 20kg |
Box contents
- Javweld 200Amp 220Volt PFC Ac/DC tig welding machine
- Gas flow meter
- Gas pipe
- Earth clamp lead
- User manual
- Foot pedal - Optional extra not included
- Fingertip torch amperage control - Optional extra not included
- Tig torch - Optional extra not included
Warranty
- Javweld machines include a one year warranty
- All Javweld machines are locally backup & supported by Online industrial
- Javweld South Africa warranty terms & conditions apply
- Online industrial terms & conditions apply
