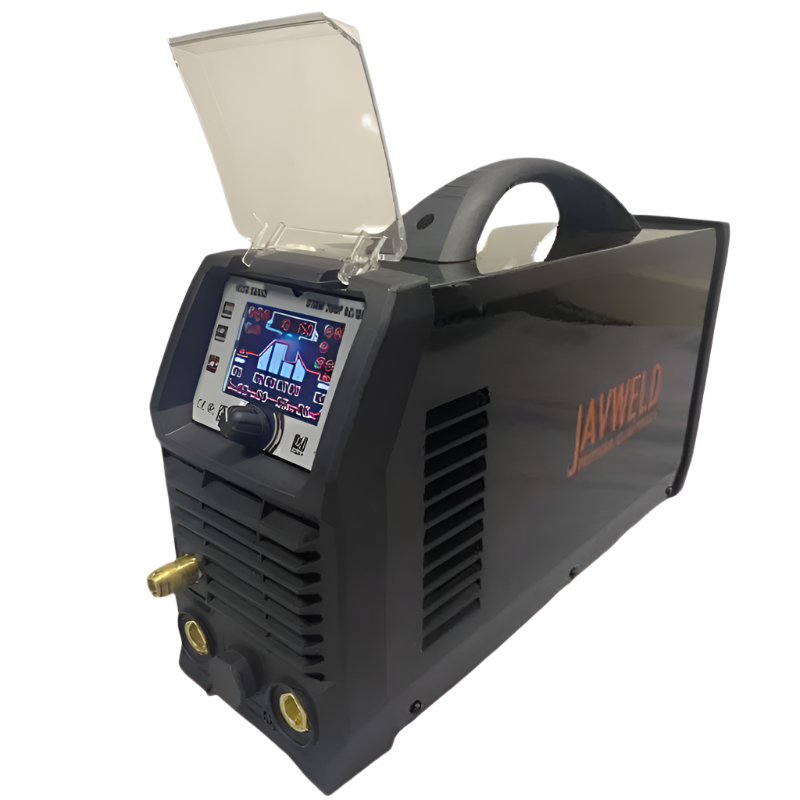

Javweld 200Amp 220Volt HE Eco series HF PFC AC/DC tig welding machine
Regular price
R 14,266.48
Couldn't load pickup availability
Features
The Javweld 200Amp 220Volt HE Eco series HF PFC AC/DC tig welding machine is a small and compact powerhouse that delivers high-quality welds. With its advanced technology, this machine offers improved energy efficiency and precise control, making it ideal for various welding tasks. Experience the benefits of a professional tig welding machine with Javweld.
- AC/DC Mix
- HF Tig function
- Pulse Tig function
- Spot Tig function
- Multi-wave function
- Pre flow + post flow function
- 2T/4T function
- Programmable job memory function
- Clear LCD display
- Fine tune current selector
- High duty cycle
- IP23 Protection Class H
- Over & under load protection
Specifications
| Power supply voltage | 220V |
| Output current range | 10-200A |
| Effective current (A) | |
| Rated input power | |
| Rated input current | |
| No load voltage | 67V |
| Welding processes | Pulse TIG HF TIG AC TIG DC TIG MMA |
| Max alloy capacity | TIG: 1.6-4.0mm MMA: 2.0-4.0mm |
| Rated duty cycle @40°C | 60% @200A 100% @120A |
| Weight | 20kg |
Box contents
- Javweld 200Amp 220Volt PFC Ac/DC tig welding machine
- Gas flow meter
- Gas pipe
- Earth clamp lead
- User manual
- Water cooler - Optional extra not included
- Trolley - Optional extra not included
- Foot pedal - Optional extra not included
- Tig torch - Optional extra not included
Warranty
- Javweld machines include a one year warranty
- All Javweld machines are locally backup & supported by Online industrial
- Javweld South Africa warranty terms & conditions apply
- Online industrial terms & conditions apply
