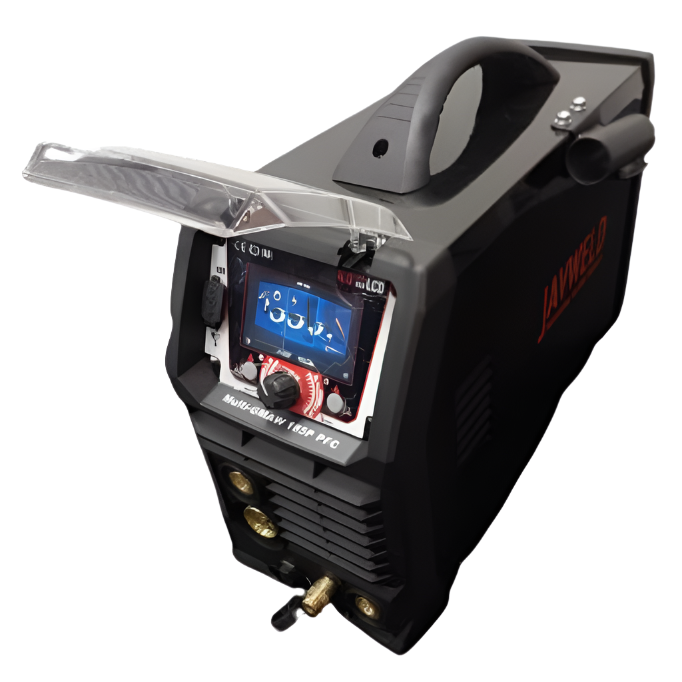

Javweld 185Amp 220Volt HF tig synergic pulse compact mig welding machine
Regular price
R 13,885.39
Couldn't load pickup availability
Features
Introducing the Javweld 185Amp 220Volt HF synergic pulse compact mig welding machine - the all in one solution for your welding needs. With its 185Amp power and multi-process capabilities, this compact machine is powerful and versatile. Get professional results with ease.
- Synergic- FE, S/S, CUSI, CUAL, Aluminium
- Q-Start, dynamic arc and multi-tack functions
- Arc force hot start function
- HF Tig function
- Pulse Tig function
- 2T/4T function
- Programmable job memory function
- Clear colour LCD display
- Fine tune current selector
- High duty cycle
- IP23 Protection Class H insulation
- Over & under load protection
Specifications
| Power supply voltage | 110-230V |
| Output current range | 10-185A |
| Effective current (A) | TIG: 10A MMA: 10A |
| Rated input power | TIG: 13kW MMA: 15.5kW |
| Rated input current | TIG: 25.5A MMA: 31.5A |
| No load voltage | 68V |
| Welding processes | MIG Pulse TIG HF TIG MMA |
| Max alloy capacity | MIG: 0.6-0.9mm TIG: 1.6-3.2mm MMA: 2.0-3.15mm |
| Spool capacity | 5kg |
| Rated duty cycle @40°C | 60% @185A 100% @125A |
| Weight | 20kg |
Box contents
- Javweld 185Amp 220Volt HF pulse synergic compact mig welding machine

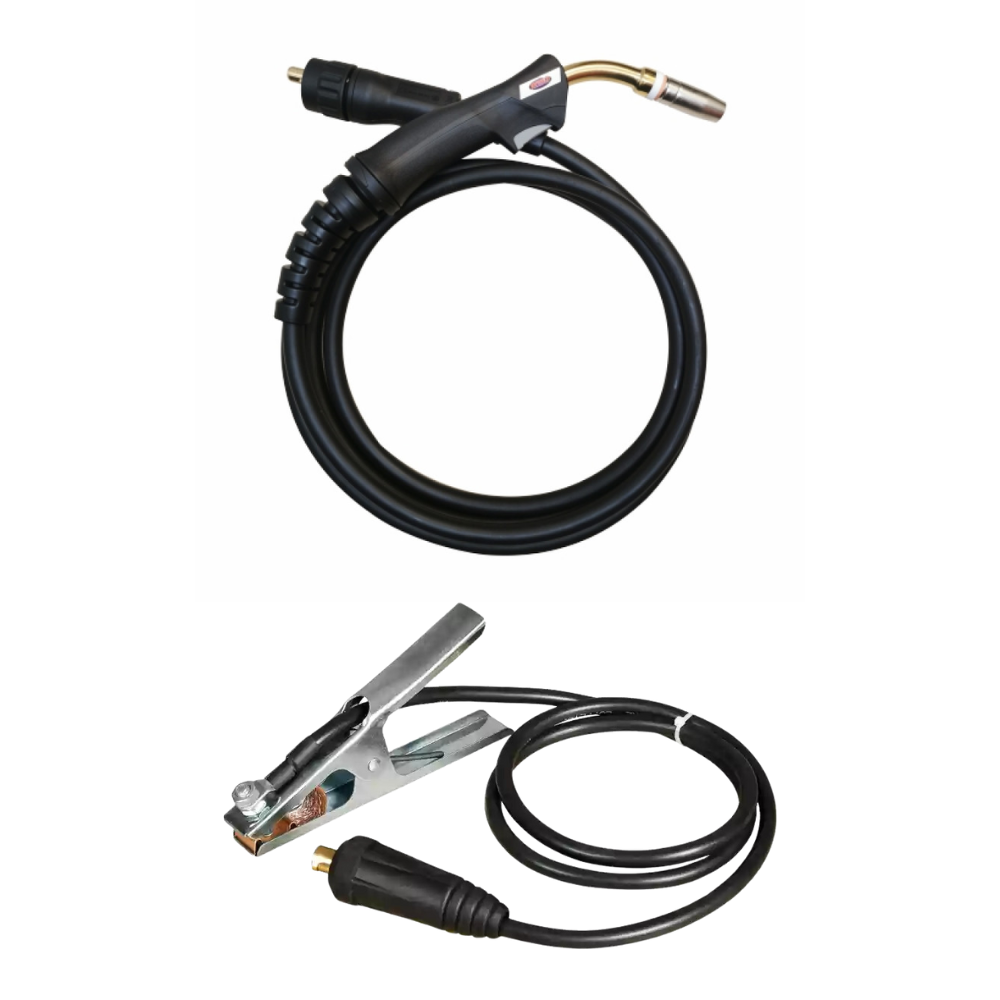

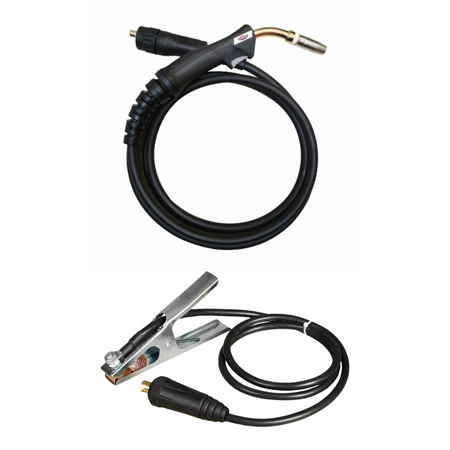

- MB15 3m Mig welding torch
- Gas flow meter
- Gas pipe
- Earth clamp lead
- User manual
- Mig torch - Optional extra not included
Warranty
- Javweld machines include a one year warranty
- All Javweld machines are locally backup & supported by Online industrial
- Javweld South Africa warranty terms & conditions apply
- Online industrial terms & conditions apply
