S-Series 400Amp Diesel generator welding machine
Regular price
R 409,305.00
Regular price
Sale
R 510,000.00
Sale price
R 409,305.00
Couldn't load pickup availability
Features
With the 400Amp S-Series Diesel generator welding machine, you can easily and efficiently weld metal surfaces without any hassle on multi-weld processes. It's powerful S-Series feature, this machine offers superior performance and precision, making it the top choice for professionals and experts in the industry.
- Digital amperage and voltage display
- Easy weld process selector mode
- Built-in VRD Voltage reducer
- VRD-Off 72Volts for ideal pipe welding applications
- Acute amperage and voltage control
- Arc force/Inductance control
- Weld process: Arc, Tig, Mig, flux-cored Mig and carbon arc gouging
- 100% Duty cycle at maximum amperage up to 40C
- 220Volt + 380Volt Auxiliary power outlets
- Built-in twin cylinder engine driven compressor
- Fuel, oil and temperature gauges
- Emergency shut off switch
- Four extractable service panels for easy access
- Durable steel construct with precision performance
- Locally manufactured in South Africa
- Two year warranty

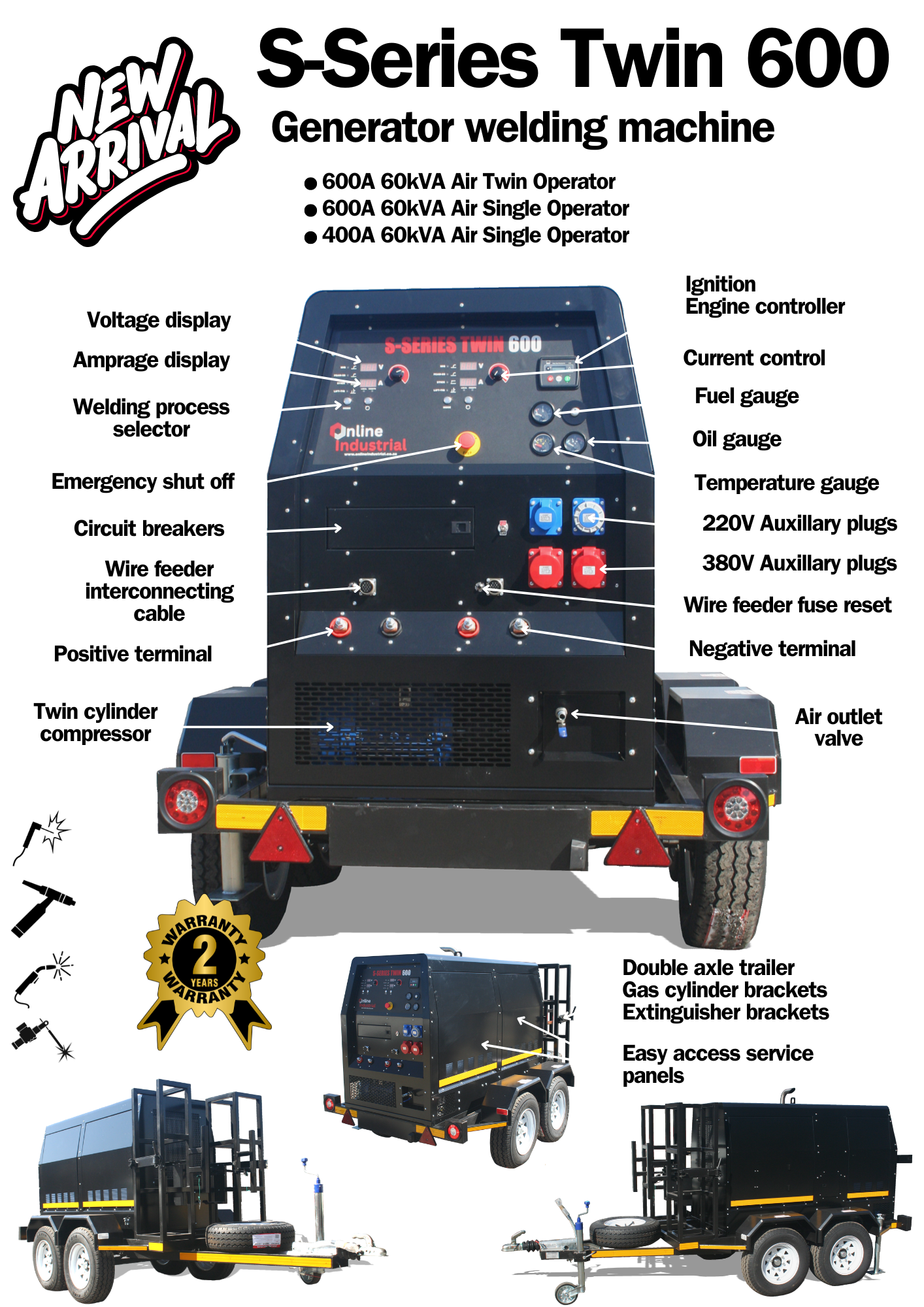

**Picture illustration is only sample and design front panel will change dependent on S-Series type**
Specification
| Amperage | 400A |
| Voltage | 38V |
| Weld process | ARC: 2.0-6.3mm TIG: 1.6-4.0mm MIG: 0.6-1.6mm Flux-cored MIG: 1.0-2.0mm Electrode gouging: Max 3.15mm |
| Duty cycle | 100% at max amperage Tested at 40C |
| Operators | Single |
| Auxiliary output | 2x 220V/230V 32A 7.5kVA 50Hz 2x 380V/400V 40kVA 50Hz |
| Engine | Perkins 1103A-33TG |
| Fuel type | Diesel |
| Alternator | 40kVA |
| Colour | Black |
| Certification | VRD certification Test certification |
| Dimension | 1720L x 850W x 1150H Dependent on accessories |
| Weight | 1050kg Dependent on accessories |
| Manufacturing lead-time | 4-7 Weeks Dependent on component availability |
Engine

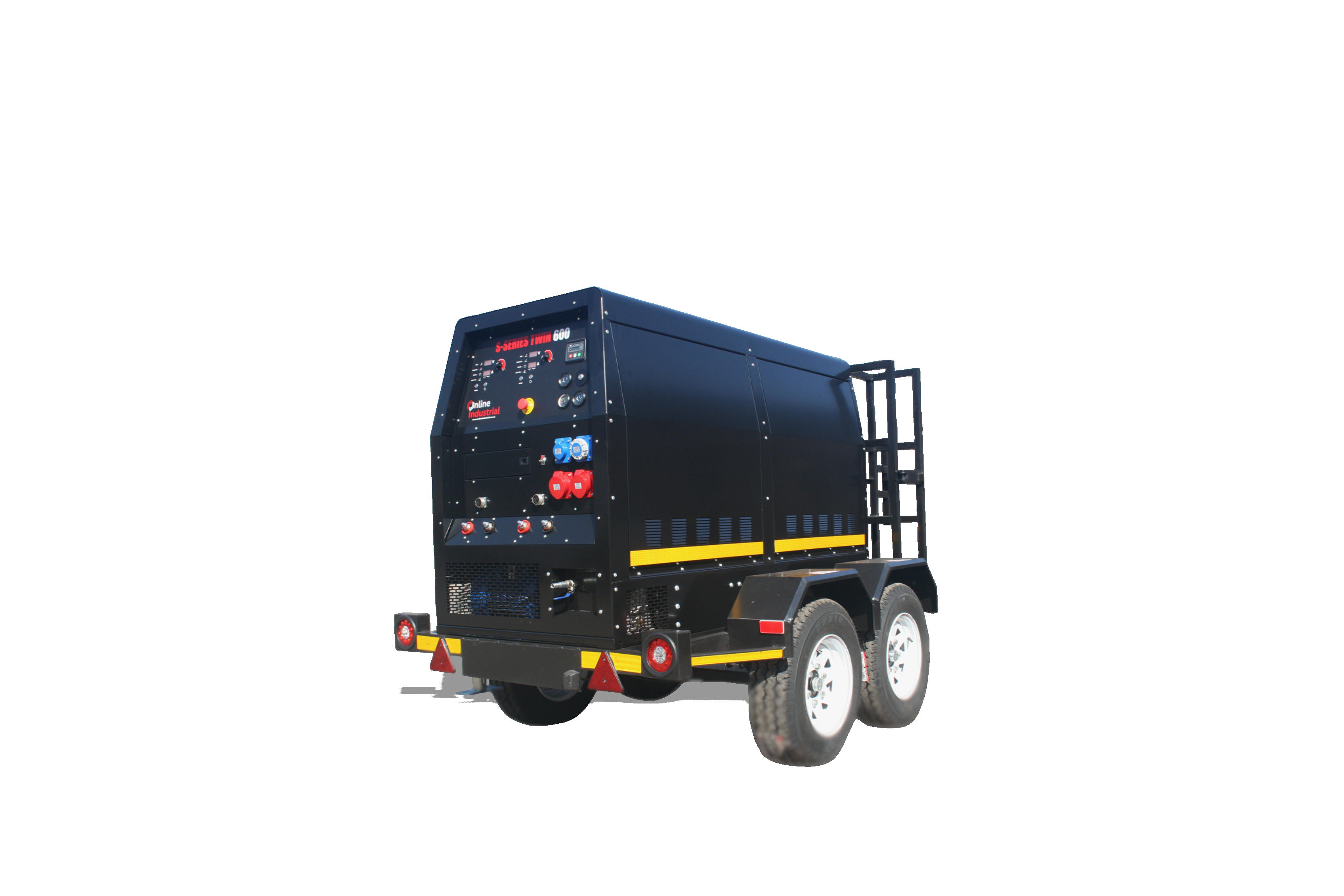

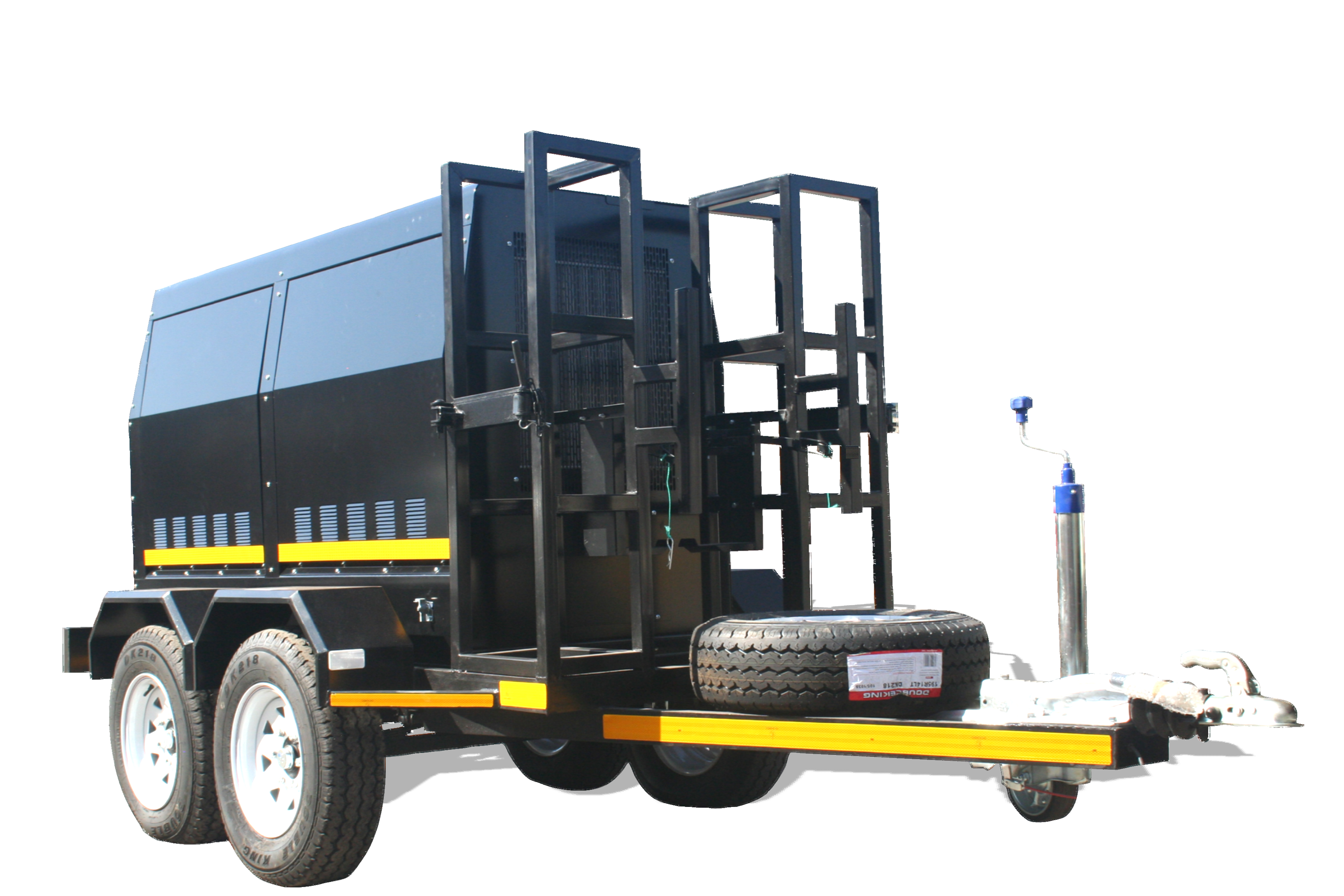

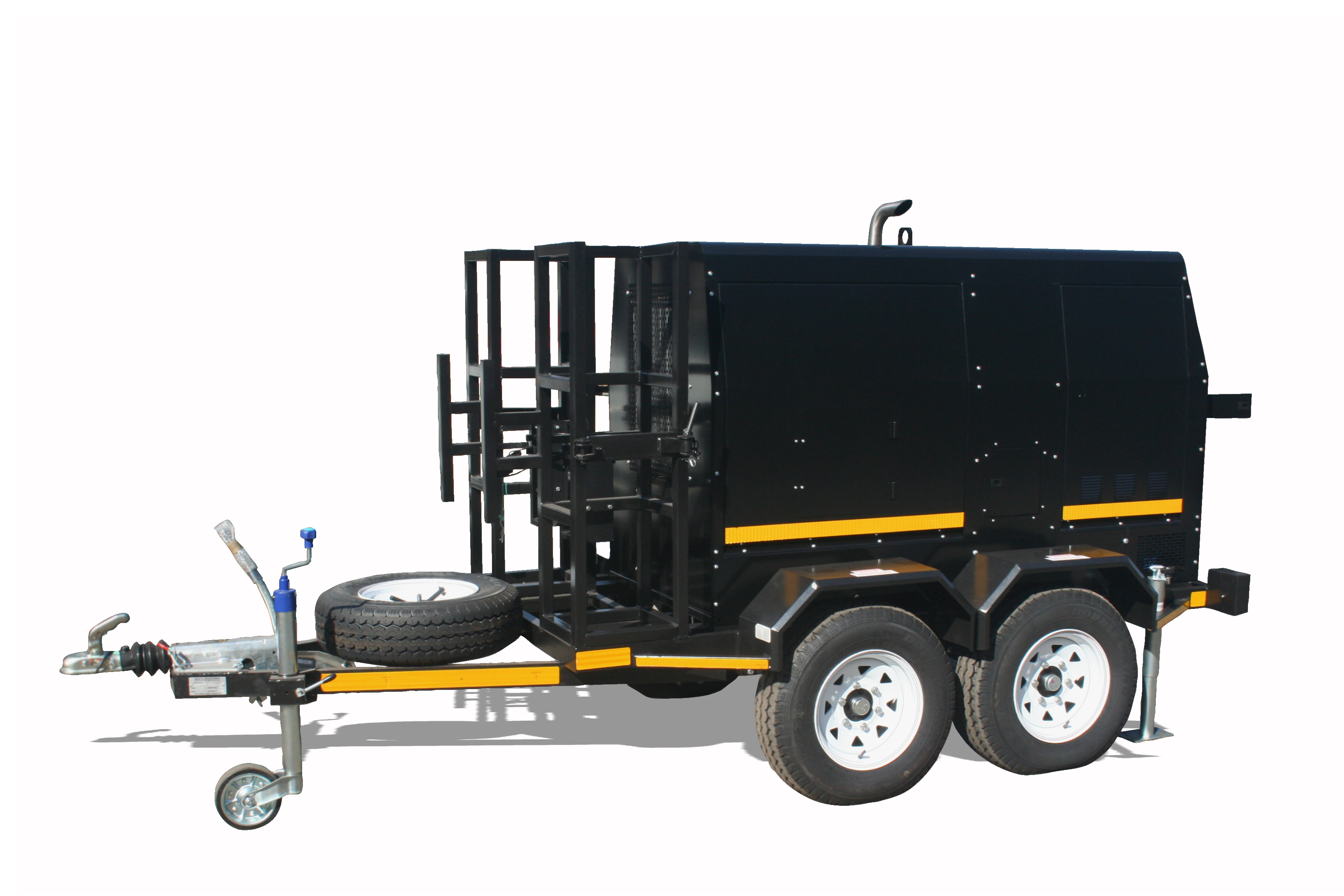

Trailer
- Roadworthy ready trailer
- 2000kg coupler brake system
- Light tailgate with number plate holder
- Four 14'' wheels with spare wheel
- Four steel wheel fenders
- Yellow reflective tape
- Double gas cylinder bottle brackets
- Double fire extinguisher bottle brackets
- Double jockey wheel
- Double stabilizing arm
- Wheel stop blocks
- Front storage tool box - Optional extra
- Dimensions 2200mm x 1130mm (Dependent on accessories)
Accessories
- Carri pack suitcase four wheel drive wire feeder
- 10m 50mm Interconnecting cable
- 10m 50mm Arc welding cable set complete
- MB36 4m MIG torch
- Gas flow meter
- Solar auto darkening welding helmet
Warranty
- All S-Series diesel generator welding machines include 2-Year warranty
- Perkins South Africa warranty terms & conditions apply
- Wayne's compressor warranty terms & conditions apply
- Online industrial terms & conditions apply
- All certifications are available on request by Online industrial Pty Ltd
